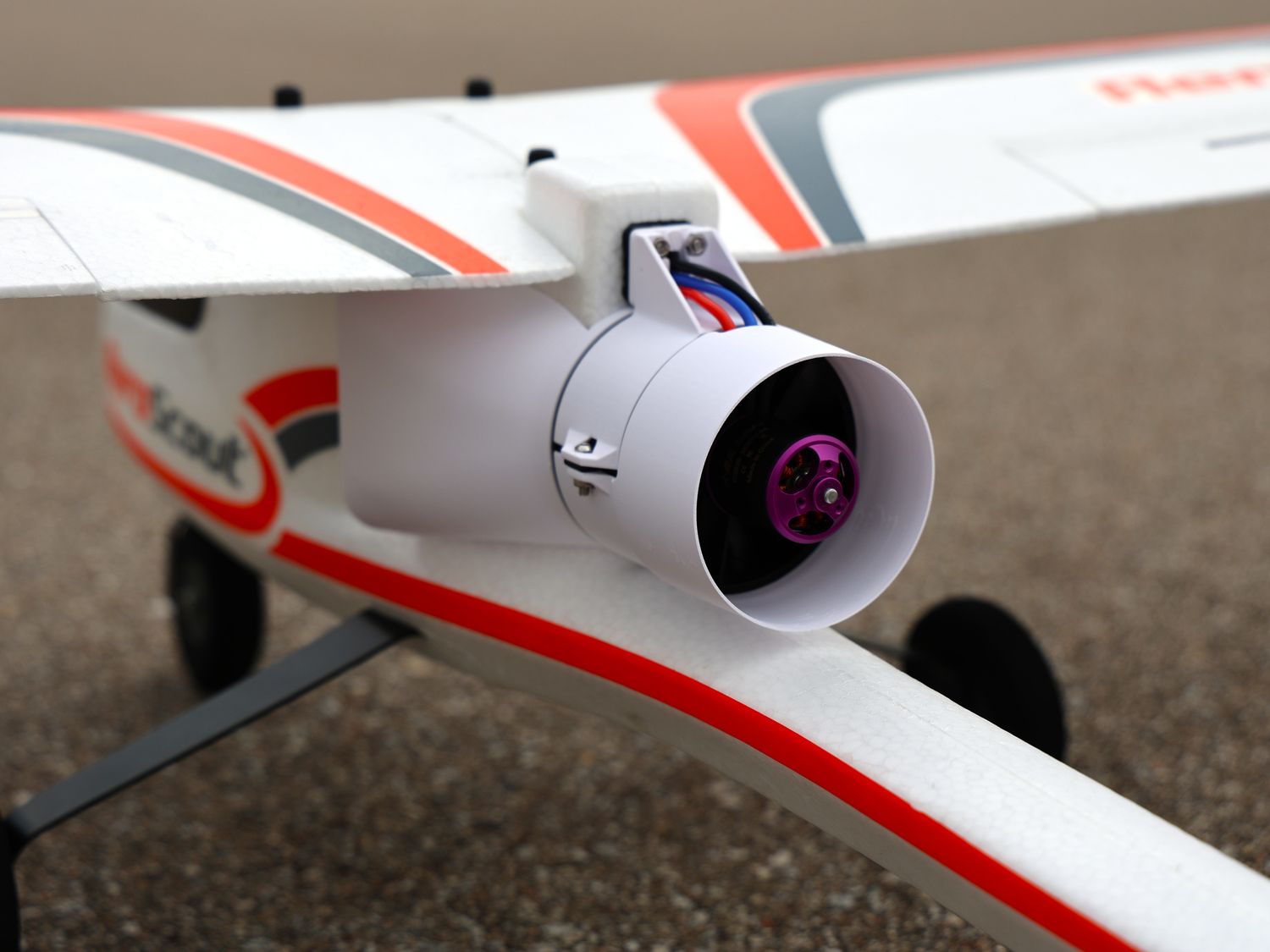

AeroScout 64mm EDF Conversion Kit

AeroScout 64mm EDF Jet Conversion Kit

Watch in action: KIN Additive YouTube

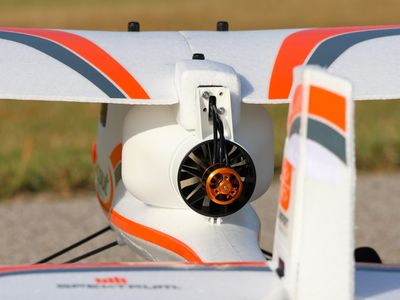

Assembly Video (50mm version shown, but 64mm is the same process):

Battery Suggestions:

-We recommend adding the KIN Servo Relocation Plate to your order. With the elevator and rudder servos relocated further back, the extra space allows for a 3200mAH battery. The benefit is extra flight time and minimal to no added steel weights required to obtain a balanced CG. Note that if using the stock landing gear, the nose gear push rod will need to be removed and then replaced with the included push rod (must be measured and bent by user)

-Using the stock elevator and rudder servo locations, space only allows for a 2200mAH 30C battery or 50C (tight fit but works). 3oz of steel weights (six 0.5oz weights) must be added to the nose to achieve a balanced CG. All landing gear configurations are compatible and don't require additional work going this route.

64mm EDF Mounting Kit Includes:

• x1 Inlet Duct
• x1 Motor Mount - for 64mm EDF
• x1 Thrust Outlet Cone (optional to install)
• x1 Motor Mount Shim (thick version)
• x6 Balancing Weights (0.5oz each - use as needed)
  • If using the KIN Servo Relocation Plate and a 3200mAh Lipo, 0-2 pieces are needed.
• x1 Heatsink with thermal tape for the ESC
• x4 M3x16mm bolts
• x2 M3x12mm bolts
• x6 M3 nuts

KIN Servo Relocation Plate Includes:

This optional add-on allows the relocation of the servo's further back, 2 inches, in the fuselage allowing more room to fit a 3200mAH battery (or larger), versus the smaller 2200mAH with the stock servo location.

• Relocation Plate
• Nose Wheel Push Rod Extension
• Wheel Collar (2.5mm I.D.)

*as of 4/7/2026 the kit now uses a 2.5mm wheel collar to connect to the nose wheel push rod. Bending a new nose wheel push rod is no longer necessary*

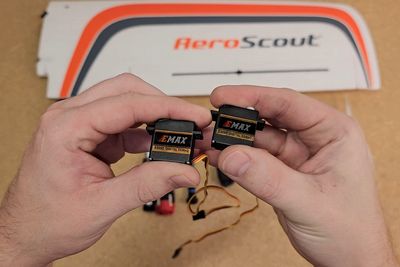

Stronger Elevator Servo Add-on Includes:

The Emax ES09D is ~2X stronger and ~1.6X faster than the stock servo. For your convenience we offer this as an optional add-on. Also available directly through Wind Catcher RC: ES09D Servo.

• x1 Emax ES09D Servo Motor

What You'll Need (sold separately):

• An EDF that has a removable bell mouth is required to fit the inlet duct.
• An ESC to match the power needed.

Standard Configuration:

• Both 64mm EDF with 3500kV motor and 50amp ESC: Amazon Link - EDF & ESC
• 64mm EDF with 3500kV motor: Amazon Link
• Flycolor 50amp ESC: Amazon Link
• Toytensi 50amp ESC: Amazon Link

"Overclocked" Configuration (suggested, but at your own risk):

• 64mm EDF with 3900kV motor: Amazon Link
• Toytensi 60amp ESC: Amazon Link

For all international orders located outside of the US, please order through my Etsy Shop: https://kinadditive.etsy.com/listing/4405434308

**This is an original design and product, designed and manufactured solely by KIN Additive LLC. KIN Additive LLC is not affiliated with HobbyZone® or AeroScout™ in any way.**
