AeroScout Jet Trainer - 50mm EDF Mounting Kit

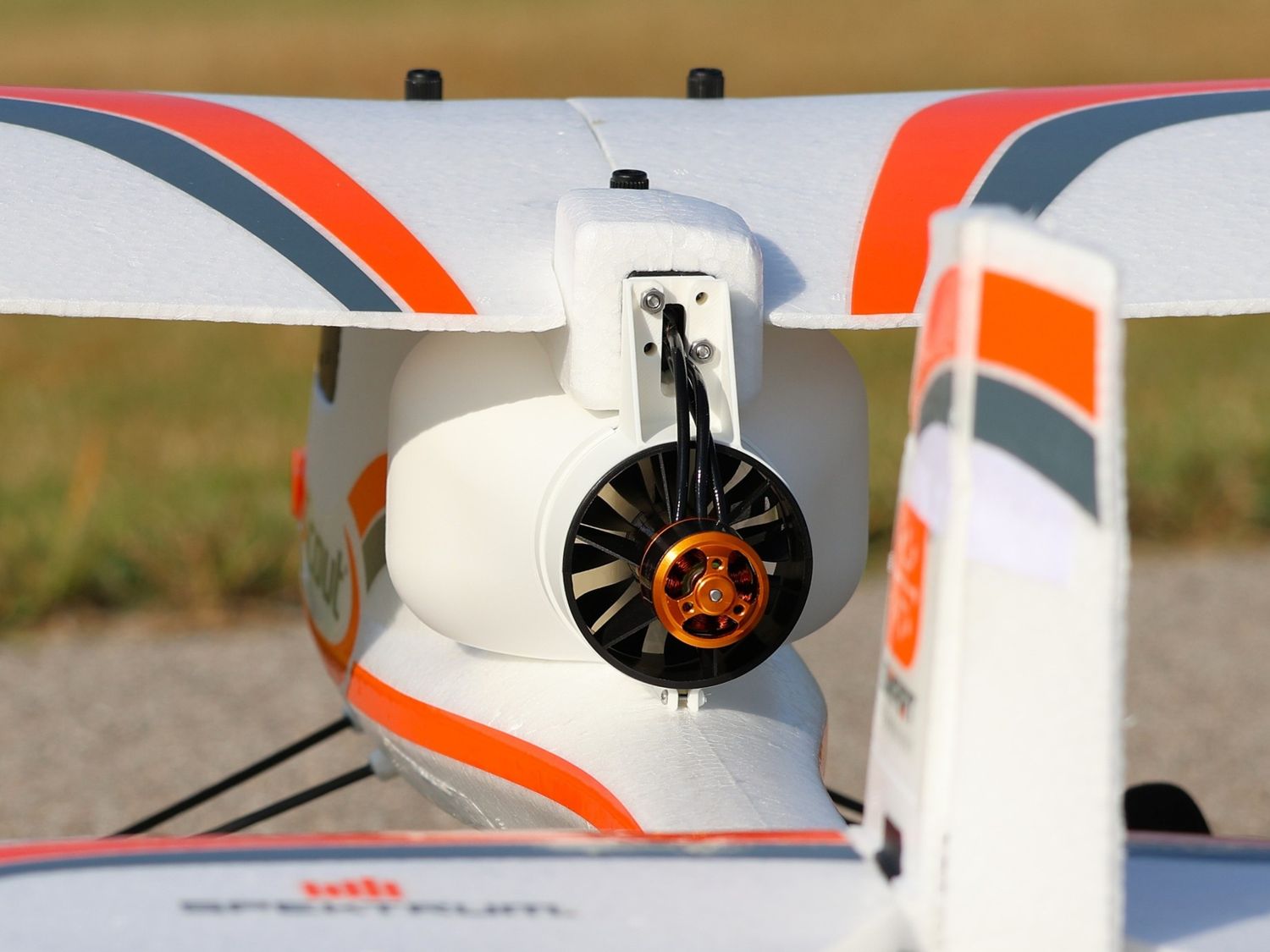

AeroScout 50mm EDF Jet Trainer Conversion Kit

Ready to make the jump from propellers to jets with minimal risk? The KIN Additive 50mm EDF Mounting Kit is your perfect, low-cost entry into the world of electric ducted fan (EDF) flight.

Designed to be an easy flying EDF, this simple upgrade lets you experience the exhilarating feel of a jet and, best of all, the incredible sounds that come with it. Use your existing AeroScout RC plane to master the basics of jet flying before you commit to an expensive, detailed, to-scale model. It's the most affordable and effective way to learn.

Watch in action: KIN Additive YouTube

Compatible with both stock landing gear and the KIN tail dragger landing gear.

Battery Suggestions:

This kit is 3S and 4S compatible, but we highly suggest using a 2200mah 4S Battery to get the full power range of the 50mm EDF. Estimated flight time is 3-5 minutes.

Landing Gear & Center of Gravity (CG)

Depending on your battery and landing gear setup, you may need to add the included steel weights to balance the CG. When using the recommended 2200mAH 4S 30C battery Amazon Link, (the 50C pack is a very tight fit, but works), CG balancing requires the following:

-Factory landing gear requires extra nose weight.

-KIN landing gear requires little to no extra weight.

-No landing gear/belly lander requires extra nose weight.

50mm EDF Mounting Kit Includes:

-Inlet Duct

-50mm EDF Motor Mount

-Motor Mount Shim for 4300kv motor (thick)

-Motor Mount Shim for 5000kv motor (thin)

-Balancing Weights (use as needed)

-Heatsink with thermal tape for the ESC

-Qty:2 Steel Balancing Weights (0.5oz each)

-Qty:4 M3x16mm bolt

-Qty:4 M3 nut

-Qty:1 M2x8mm bolt

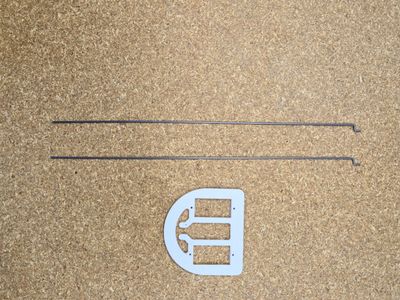

KIN Servo Relocation Plate Includes:

This optional add-on allows the relocation of the servo's further back in the fuselage allowing more room to fit a 3200mAH battery, versus the smaller 2200mAH with the stock servo location.

-Relocation Plate

-Unbent push rod to replace the now too short nose wheel push rod (if using stock landing gear).

Stronger Elevator Servo Add-on Includes:

The Emax ES09D is ~2X stronger and ~1.6X faster than the stock servo. For your convenience we offer this as an optional add-on. Also available directly through Wind Catcher RC ES09D Servo.

-One Emax ES09D Servo Motor

What You'll Need? EDF and ESC (sold separately)

Standard Configuration:

50mm EDF with 4300kV motor: Amazon Link

Spektrum 45amp ESC Amazon Link

Flycolor 40amp ESC Amazon Link

Flycolor 50amp ESC Amazon Link

Toytensi 50amp ESC Amazon Link

"Overclocked" Configuration (at your own risk):

50mm EDF with 5000kV motor Amazon Link (CCW is OEM, but CW had no issues)

Flycolor 50amp ESC Amazon Link

Toytensi 50amp ESC Amazon Link

For all international orders located outside of the US, please order through my Etsy Shop: https://kinadditive.etsy.com/listing/4374807141

**This is an original design and product, designed and manufactured solely by KIN Additive LLC. KIN Additive LLC is not affiliated with HobbyZone® or AeroScout™ in any way.**
